When tuning an engine's fuel delivery system, understanding how airflow is measured and used to calculate the correct air-fuel ratio is critical. Two common strategies employed in gasoline internal combustion engines are speed density tuning and alpha-N tuning. Each method has its own approach, strengths, and weaknesses, but speed density tuning is widely considered superior in most applications. Here, we'll delve into the mechanics of each strategy and explore why speed density is the preferred choice.

---

Speed Density Tuning Strategy

The speed density strategy relies on three primary inputs:

1. Manifold Absolute Pressure (MAP): Measures the pressure inside the intake manifold.
2. Engine Speed (RPM): Tracks how fast the engine is running.
3. Air Temperature (IAT): Helps calculate air density.

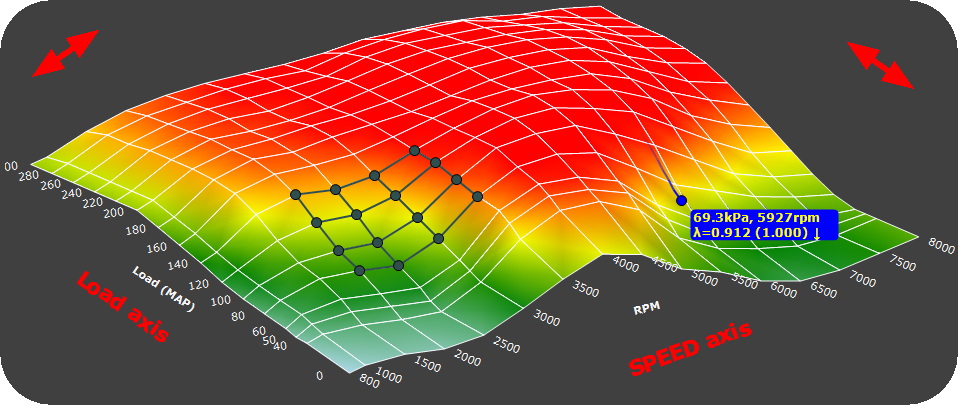

These inputs are used in combination with the ideal gas law to calculate the amount of air entering the engine. The engine's volumetric efficiency (VE) is also accounted for through a lookup table or calibration. Once the mass of air is known, the appropriate fuel injection can be determined to achieve the desired air-fuel ratio.

Advantages of Speed Density Tuning

• Accurate in a Wide Range of Conditions: Speed density accounts for changes in air pressure and temperature, making it ideal for forced induction systems or high-altitude applications.
• Reliability: With fewer sensors (compared to mass air flow-based systems), there’s less risk of sensor failure.
• Flexibility: The method can adapt to engines with significant modifications (e.g., changes in cam profiles, intake design) since it's tuned based on the physical characteristics of the engine.
• Performance at High RPM: The absence of restrictions like a Mass Air Flow (MAF) sensor ensures no airflow bottlenecks.

---

Alpha-N Tuning Strategy

Alpha-N tuning uses three different inputs:

1. Throttle Position (TPS): Measures how much the throttle is open.
2. Engine Speed (RPM): Tracks how fast the engine is running.
3. Fuel Maps: These are predefined tables that correlate throttle position and RPM to fuel delivery.

Alpha-N is commonly used in engines where the intake manifold vacuum is unreliable or unpredictable, such as engines with large throttle bodies, aggressive camshafts, or individual throttle bodies (ITBs).

Advantages of Alpha-N Tuning

• Simplistic Approach: Ideal for applications where MAP signals are noisy or irrelevant.
• Suitable for Race Engines: Often used in motorsports, especially with ITBs, where throttle position is a more reliable indicator of airflow.

---

Why Speed Density Tuning is Superior

While alpha-N can be useful in niche applications, speed density tuning outperforms it in nearly every practical aspect for modern gasoline engines. Here's why:

1. Adaptability to Environmental Conditions

Speed density compensates for changes in altitude, temperature, and barometric pressure. Alpha-N, on the other hand, lacks the ability to adjust for these factors, as it relies solely on throttle position, which doesn’t account for air density changes.

2. Better for Daily Driving and Forced Induction

Alpha-N struggles in low-load conditions, such as idling or cruising, because throttle position alone doesn't accurately represent airflow in these scenarios. Speed density excels here by using MAP to track actual engine load. It’s also ideal for turbocharged or supercharged engines, where manifold pressure is a critical indicator of airflow.

3. More Accurate Fuel Delivery

Speed density calculates airflow more precisely by considering the physical conditions of the air entering the engine. Alpha-N relies on static maps, which can lead to inaccuracies when engine dynamics change.

4. Enhanced Versatility

Engines with large modifications—like aggressive camshafts, ported heads, or intake manifolds—often see dramatic changes in airflow behavior. Speed density tuning can be recalibrated to account for these changes, while alpha-N would require entirely new fuel maps and still might fall short in precision.

5. Lower Emissions

Because speed density adjusts in real-time to air density and engine load, it provides a more consistent air-fuel ratio, reducing emissions. Alpha-N's less precise tuning can lead to rich or lean conditions, increasing emissions and reducing efficiency.

---

Conclusion

In summary, while both speed density and alpha-N tuning strategies have their place, speed density tuning offers greater accuracy, reliability, and adaptability. It’s the preferred choice for most gasoline internal combustion engines, especially those with forced induction, variable environmental conditions, or significant modifications. Alpha-N remains useful for specific applications, such as ITB-equipped race engines, but its limitations make it unsuitable for most modern engine management systems.

Choosing the right strategy is essential for maximizing performance, reliability, and efficiency, and for most tuners, speed density remains the superior choice.
