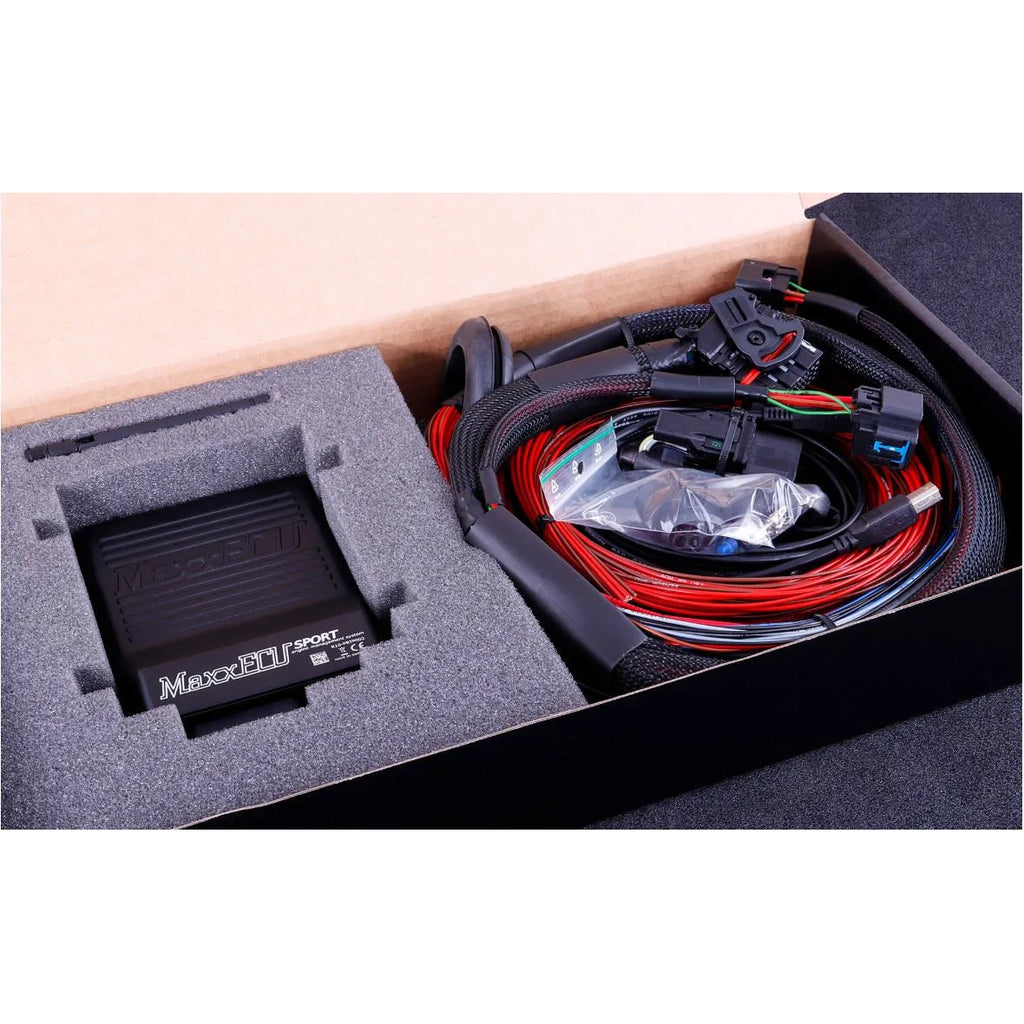

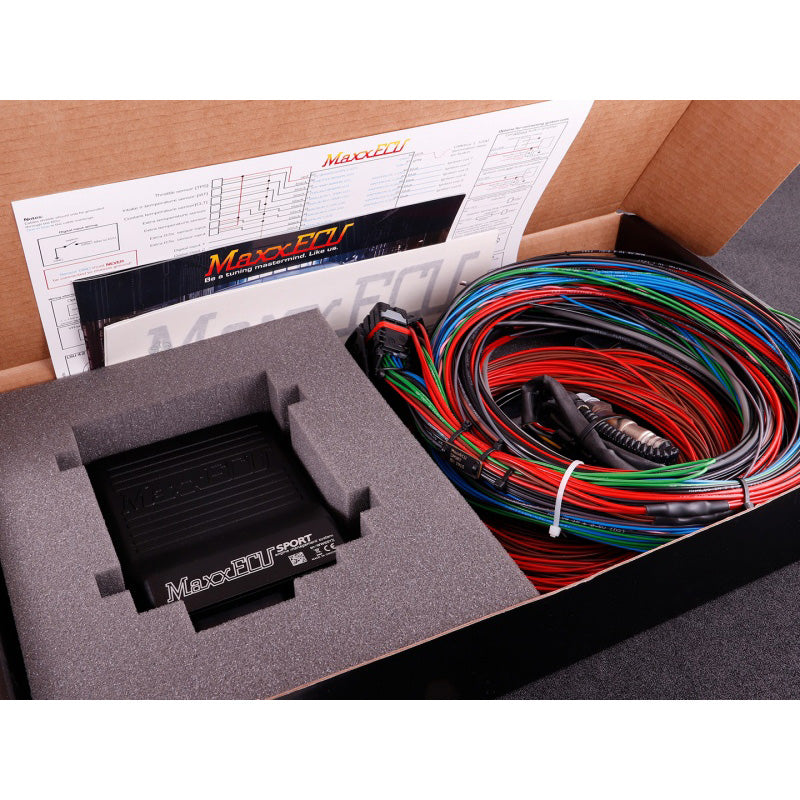

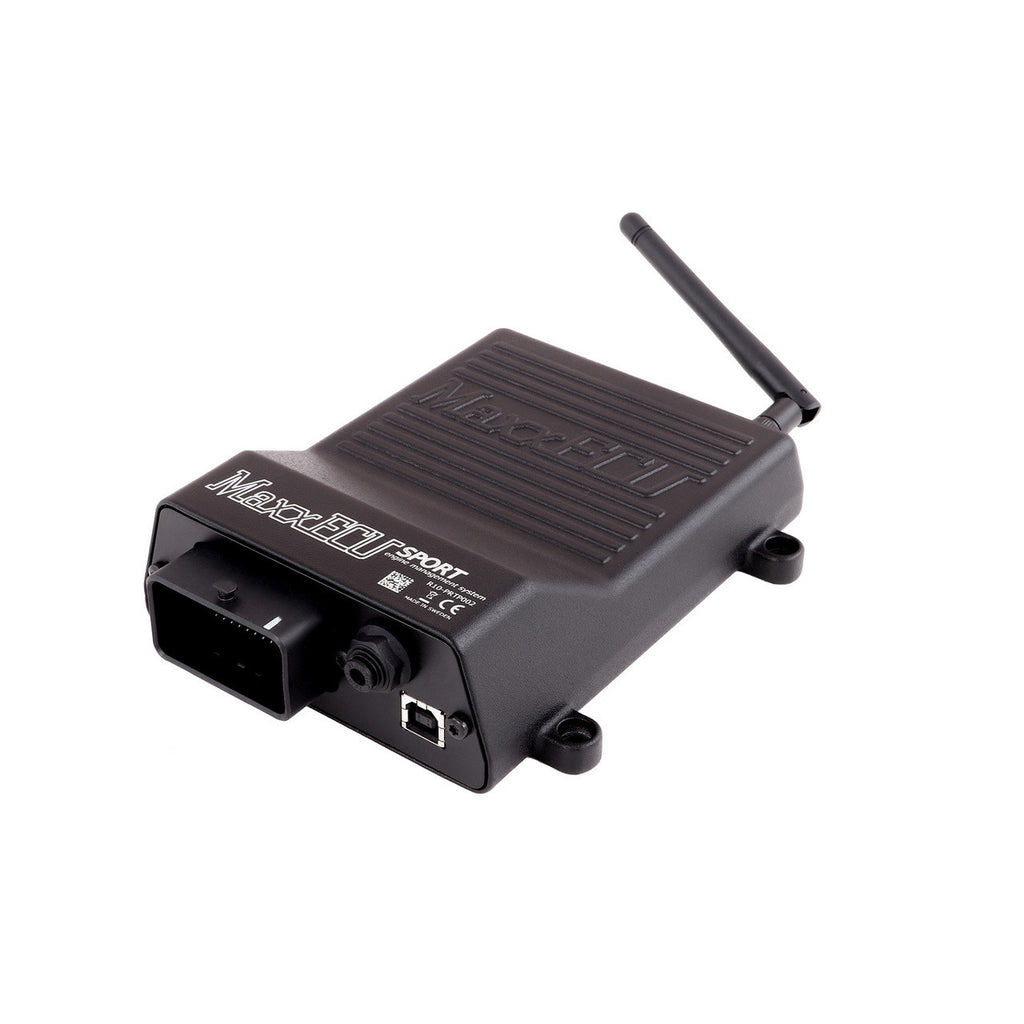

MaxxECU Sport ECU

MaxxECU SPORT inputs

• Intake air temperature sensor (IAT)
• Coolant temperature sensor (CLT)
• Throttle position sensor (TPS)
• Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
• 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
• 2 extra temperature sensors. Can be used as switches or to control additional functions
• 6 extra 0-5V inputs. Can be used for additional sensors such as measurement oil/fuel pressure
• 2 digital inputs used for example for speed sensors (Hall) or switches
• Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost

MaxxECU SPORT outputs

• 6 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
• 6 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
• 7 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-5 (2A), GPO 8 (5A), GPO 9 (2A)
• 2 extra motor outputs (e.g E-Throttle). GPO 11,12 (2A)

MaxxECU SPORT technical

• CAN bus for expansion modules, OEM vehicle CAN, ODBII
• USB communication for tuning with MTune
• Bluetooth for connecting to mobile devices with MDash
• 8MB memory for internal logging, up to 1000Hz
• Supply voltage 8-22V
• ARM Cortex-M3 120MHz main processor
• Resolution on ignition: 0.1 degrees
• Resolution on injectors: 0.001 ms
• Updates the fuel and ignition calculations 2000 times per second
• The fastest PC communication on the market
• Weight: 590g
• 140x134x42mm (including mounting points, excluding connector)
• Aluminium casing

MTune tuning features

• 2D and 3D
• Shortcuts for most operations
• Interpolation
• Local autotune
• Live-logger
• Superfast USB connection
• Live tuning - No need to burn changes - instant save

MaxxECU engine protections

• EGT fuel correction
• Lean power cut
• EGT power cut
• Rev limit
• Advanced warning and protection system
• Lambda fuel correction

MaxxECU functionality

• Launch control (up to three stages)
• Rolling launch
• Anti-lag using solenoid or E-Throttle
• Traction control
• Power management
• Shift-cut
• Overrun fuel cut
• Lambda control (closed loop)
• Nitrous control
• AC control
• Boost control (closed/open loop), extra compensation tables.
• Boost level switching
• E-Throttle support
• VANOS/VVTi support
• Logging: Internal up to 1000Hz, PC logging 20Hz
• Built-in error diagnostics and handling
• Idle control using E-Throttle, idle solenoid, stepper motor or ignition timing
• Closed loop anti-stall
• Ignition timing lock for easy synchronization with timing light
• Flex fuel

MaxxECU advanced features

• Speed limiters
• Individual fuel correction per cylinder
• Injector staging
• Virtual fuel tank/fuel consumption
• Filters on TPS, RPM and MAP signals
• Trailing ignition
• Virtual inputs/internal outputs to activate internal functions
• Use of TYPE-K sensor to report IAT up to 350 degree C/660 F
• Wastegate control with CO2 for predictable boost
• Extra user table activation based on user defined settings
• After launch power limit, function to control traction after launch
• CAN inputs (advanced) - Receive CAN data from external electronics and use in MaxxECU, such as OEM vehicle buttons.
• Automatic starting and stopping of internal log function based on user conditions (speed, load, error code etc.)
• Timers and distance counters
• CAN for OEM protocols, OBDII, and CAN modules
• Clutch slip control with user defined tables (as an example)
• Measure injector resistance directly from software
• Built-in trigger oscilloscope
• Built-in trigger logger
• Flexible load/speed axis selection
• Flexible user output functions
• Flexible user PWM/FREQ output functions
• Speedometer output function
• Tachometer output selectable 5/12V, supports external flyback coil
• Sequential gearbox control

Please Note: All Maxx ECU orders will be dropped shipped from Maxx ECU USA and may have additional lead time. Also we are not allowed to ship Maxx ECU products outside of the United States.
