MaxxECU Molex CMC Connector 0.6mm 1.5mm Pin Removal Tool

Need to remove some pins from you CMC Connector to clean up your install? Then look no further! These Are Precision machined, hard anodized and color coded and laser etched for pin size. Extremely Easy To Use!

1. Slide the grey secondary lock out of connector until it stops (NOTE: The grey lock doesn't completely come out).

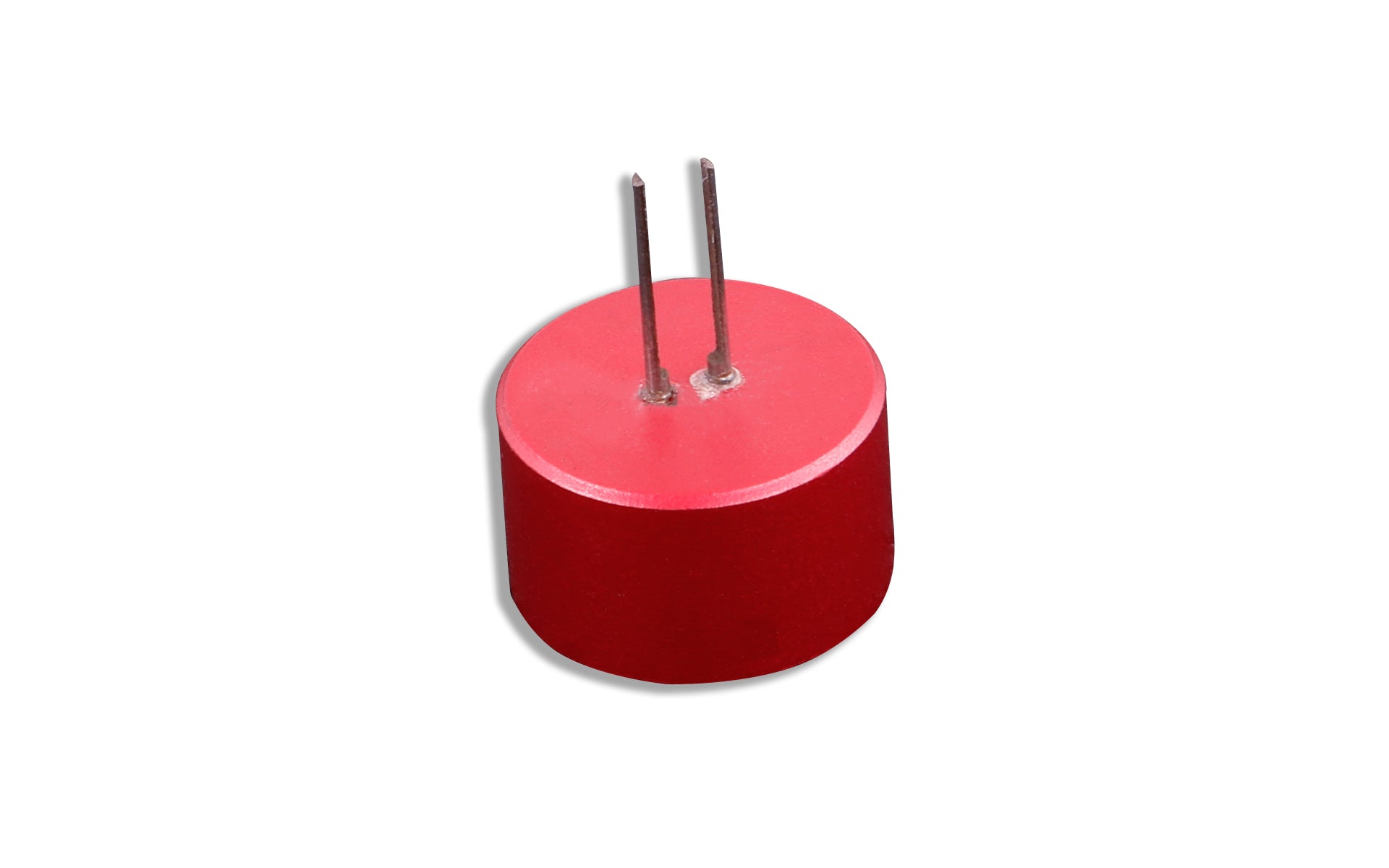

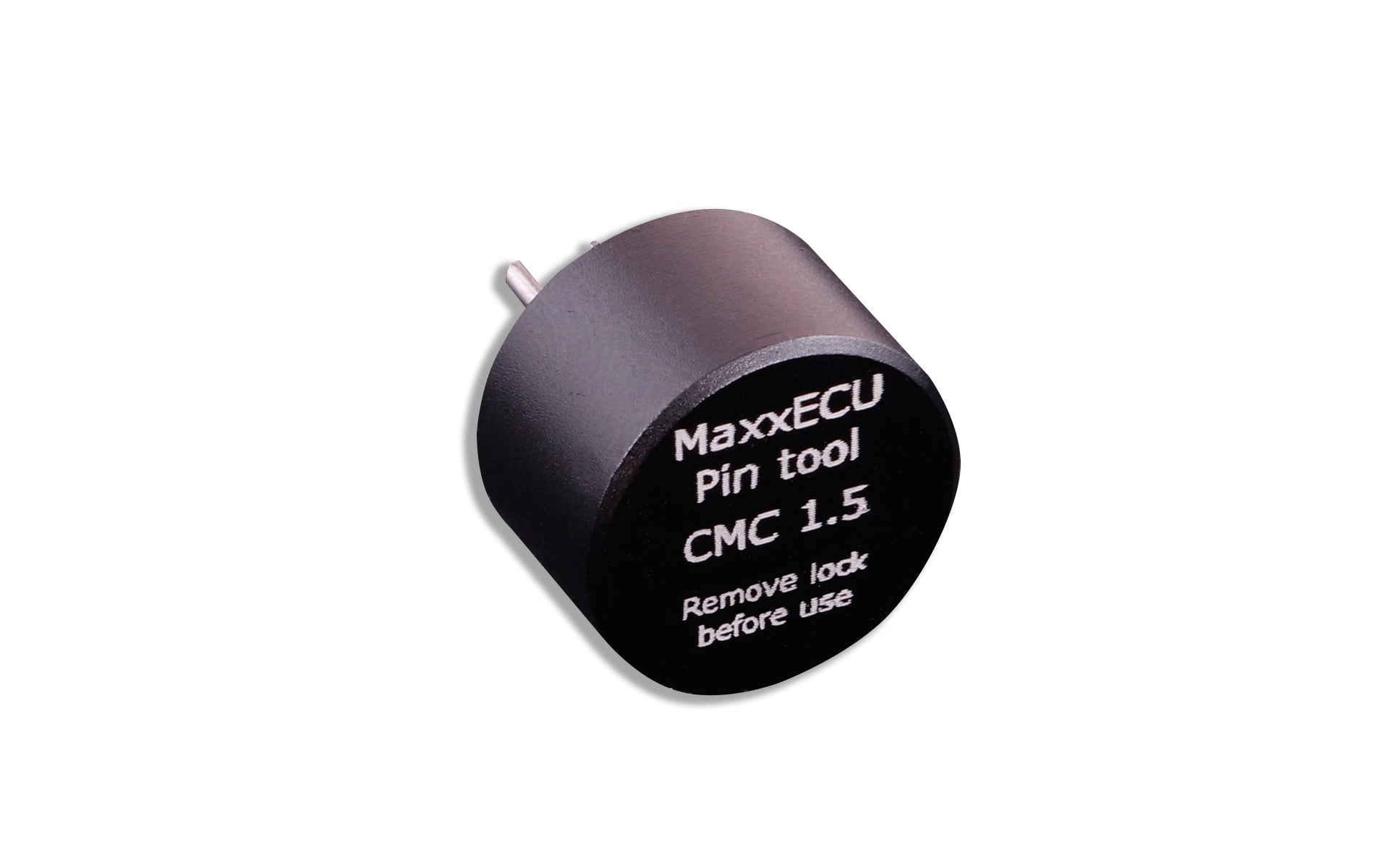

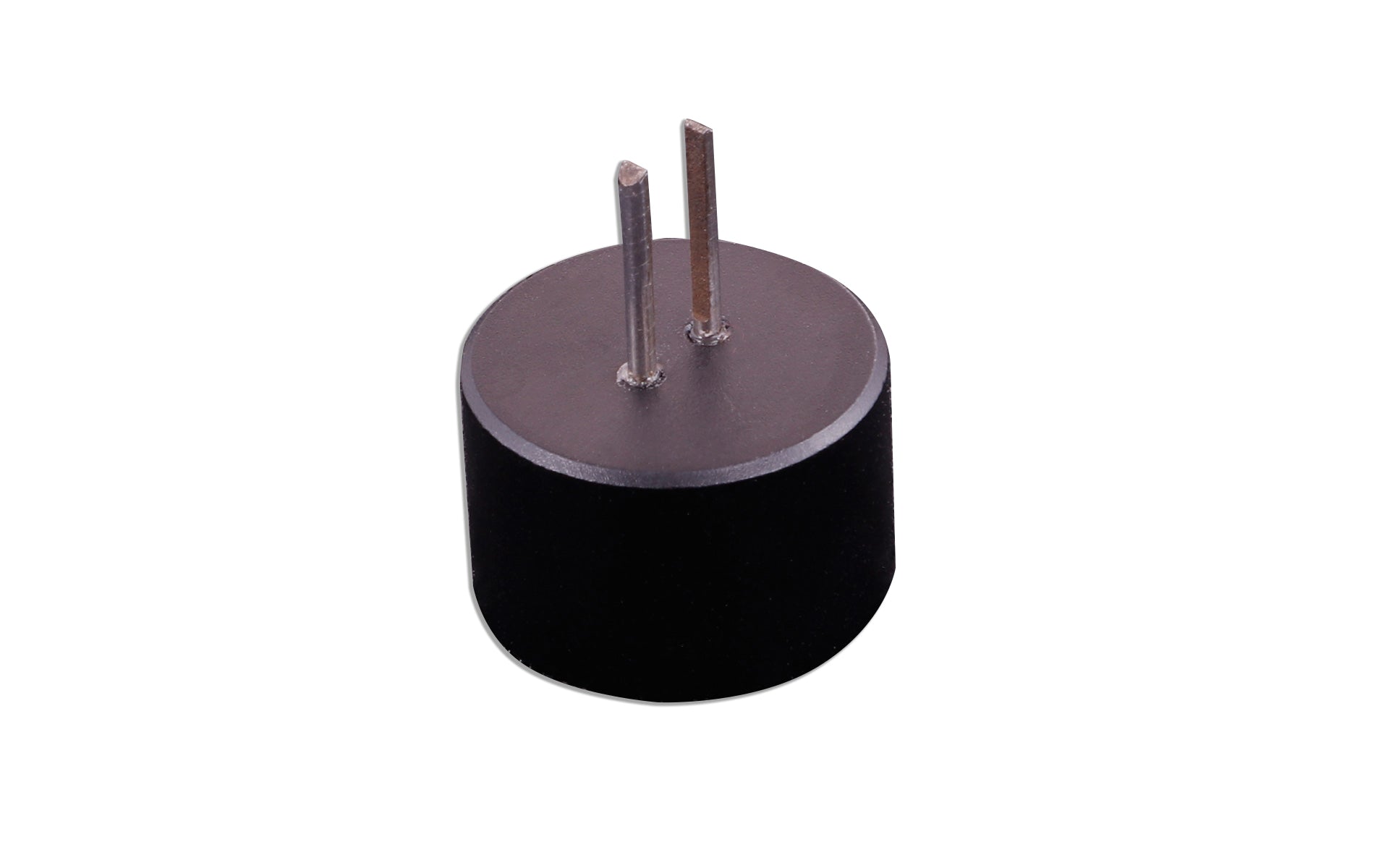

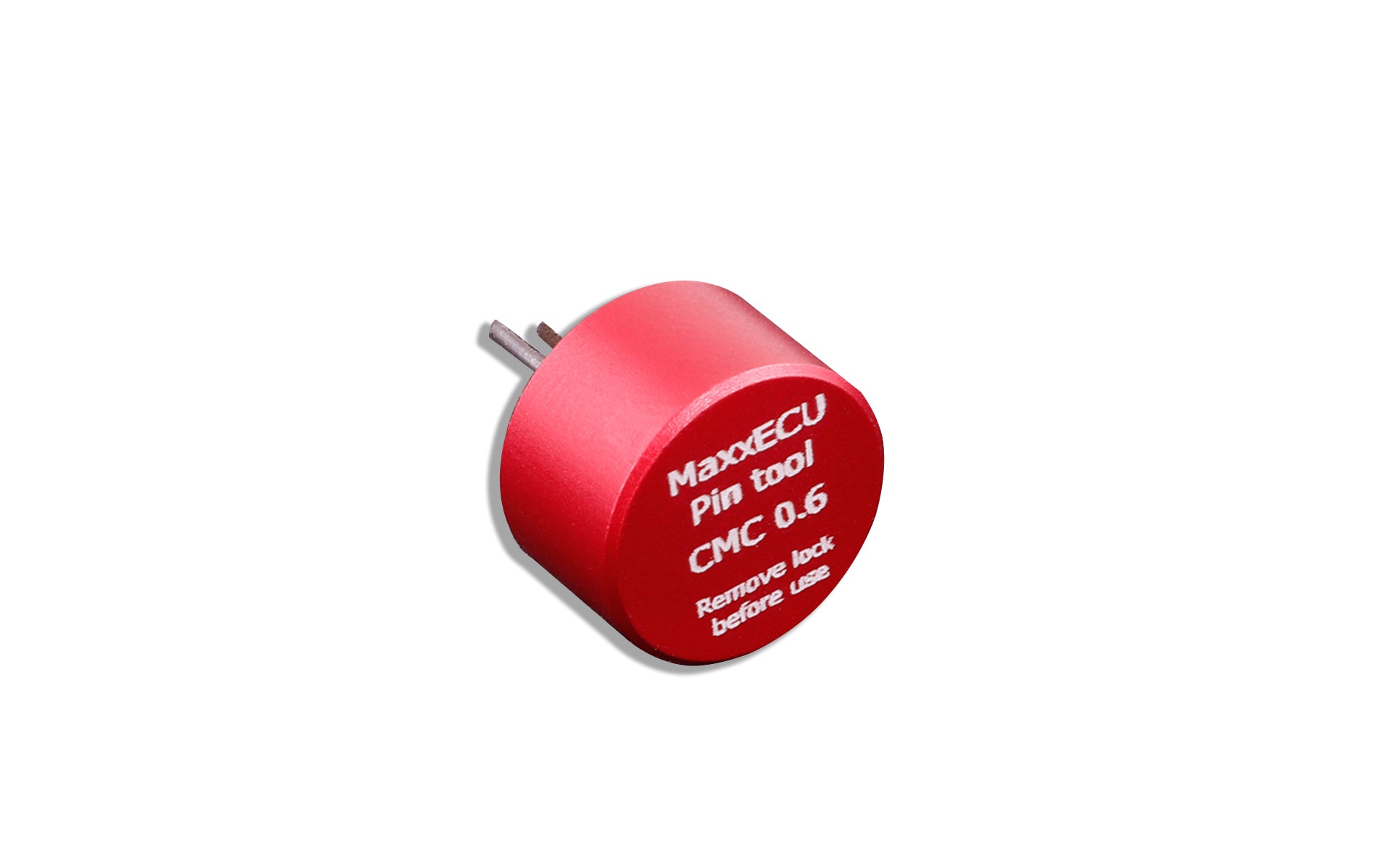

2. Choose the proper tool for the size pin you are removing. (Black For The Big Terminals, Red For the Smaller Terminals)
3. Push tool into connector face in the small triangular holes that are on each side of the pin you want to remove.
4. While holding the tool in-place, grasp wire and gently pull. It should slide right out. If it doesn't, make sure the tool is firmly seated into the connector face.

Please Note: All Maxx ECU orders will be dropped shipped from Maxx ECU USA and may have additional lead time. Also we are not allowed to ship Maxx ECU products outside of the United States.
