MaxxECU Mini Standalone ECU Bare Board

MaxxECU MINI engine control, without box and CMC connector.

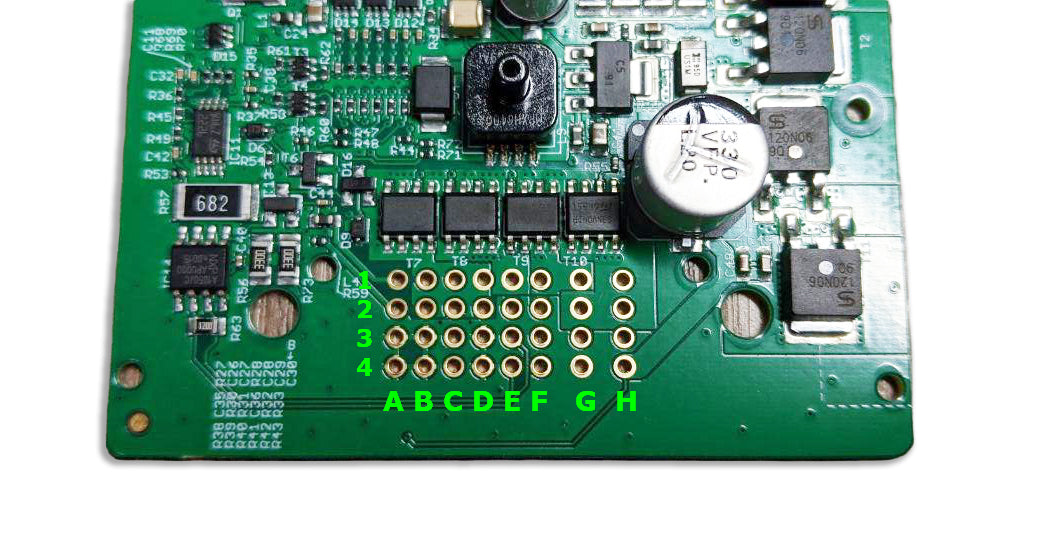

Intended for installation in an existing ECU box and requires soldering directly on the board.

NOTE: This is only for advanced users, also this product has no warranty as soldering takes place outside of MaxxECU's control.

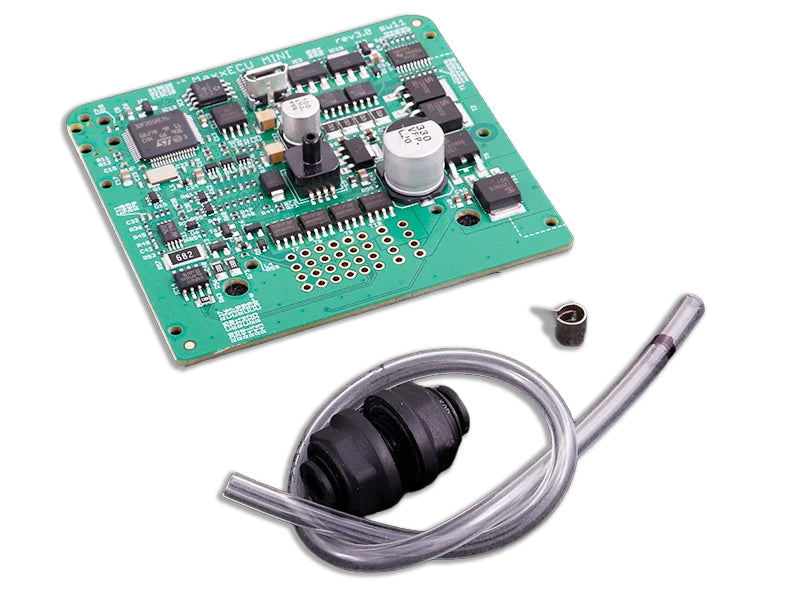

MAP sensor hose and clamp is included. Board is 65x70mm.

An exceptionally powerful yet compact ECU solution for both stand-alone and piggyback applications.

• 4 injector (high impedance only) and 4 ignition outputs
• 4 ignition outputs (no internal amplifiers).
• IAT, TPS, CLT analog inputs.
• Built-in 400kPa MAP-sensor.
• 2 extra 0-5V analog inputs.
• 2 extra digital inputs.
• 4 extra GPO (GND) outputs.
• CAN.
• 1 trigger input (VR/Hall). Available digital input can be used as HOME for sequential control).
• MTune PC-software with USB connection.
• Superfast Cortex M3 120Mhz main processor.

Note: An external igniter such as our 4 Channel igniter kit is required.

Please Note: All Maxx ECU orders will be dropped shipped from Maxx ECU USA and may have additional lead time. Also we are not allowed to ship Maxx ECU products outside of the United States.
