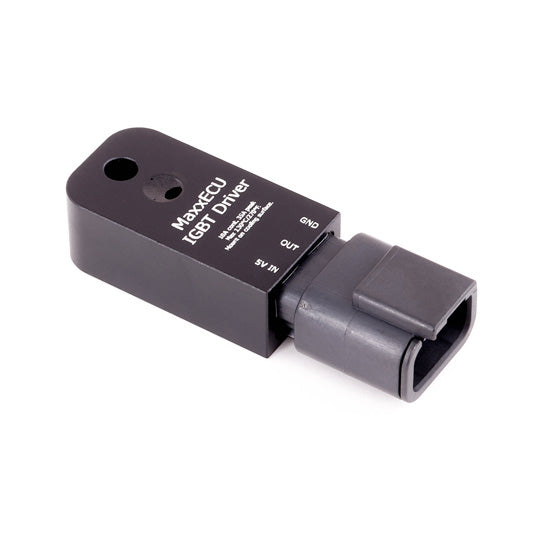

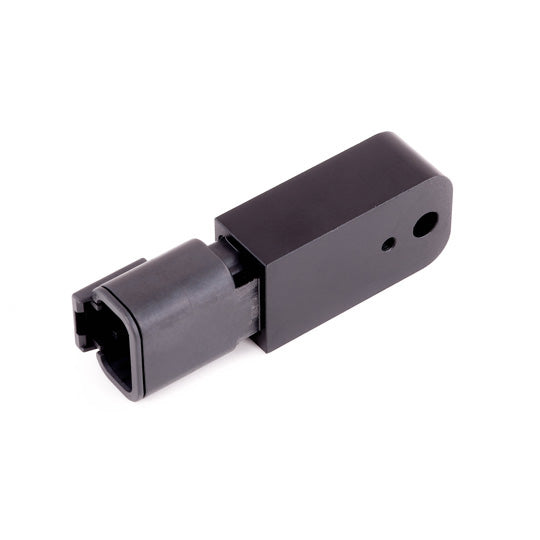

MaxxECU Single IGBT Driver Module
MaxxECU Single IGBT Driver Module
MaxxECU Single IGBT Driver Module
MaxxECU Single IGBT Driver Module MaxxECU Single IGBT Driver Module MaxxECU Single IGBT Driver Module

MaxxECU Single IGBT Driver Module

$75.95
Add to wishlist
Checkout Secure

This can be used as an external ignition amplifier, or to directly drive a NOS solenoid as an example.

This module is required to be mounted on a bigger, ideally metal surface to divert heat. It can be wired directly to any MaxxECU ignition outputs.



Features

  • 10A nominal current
  • 30A peak current
  • Easy connect with 3-way DTM connector

Mates with our DTM 3 Position Connector Kit

Shipping This item ships to

Description

This can be used as an external ignition amplifier, or to directly drive a NOS solenoid as an example.

This module is required to be mounted on a bigger, ideally metal surface to divert heat. It can be wired directly to any MaxxECU ignition outputs.



Features

  • 10A nominal current
  • 30A peak current
  • Easy connect with 3-way DTM connector

Mates with our DTM 3 Position Connector Kit
