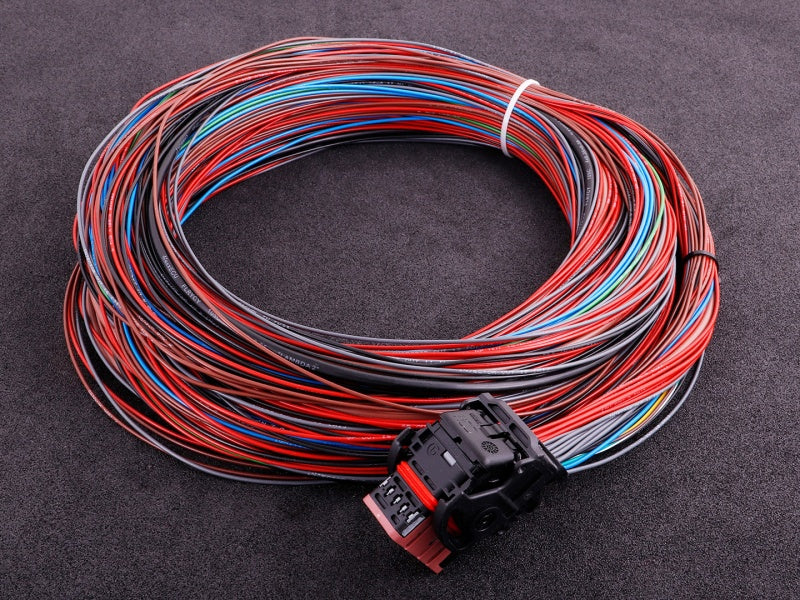

MaxxECU PRO Connector 3 Flying Lead Harness

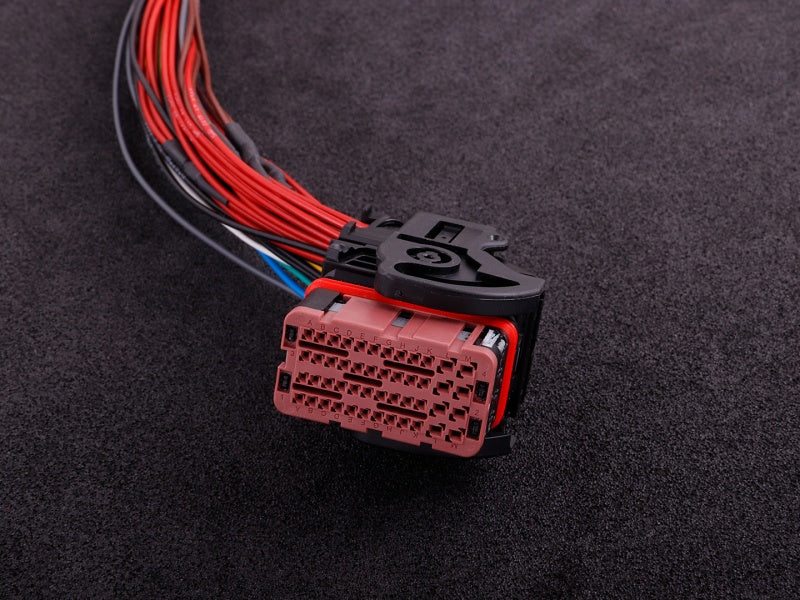

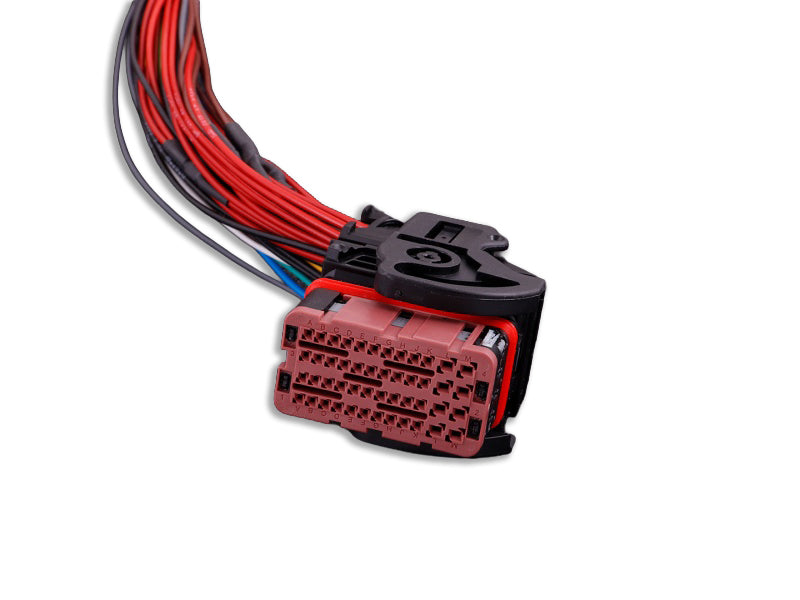

MaxxECU PRO Connector 3 Flying Lead Molex ECU Connector

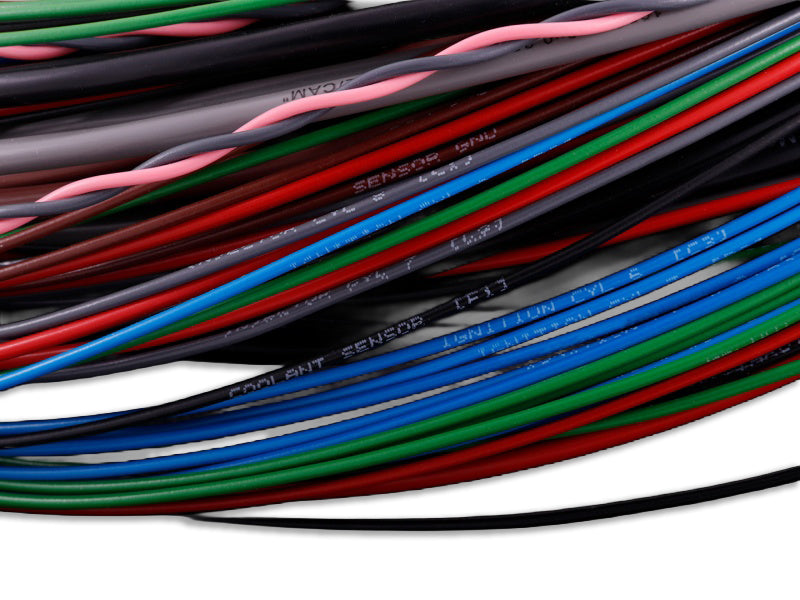

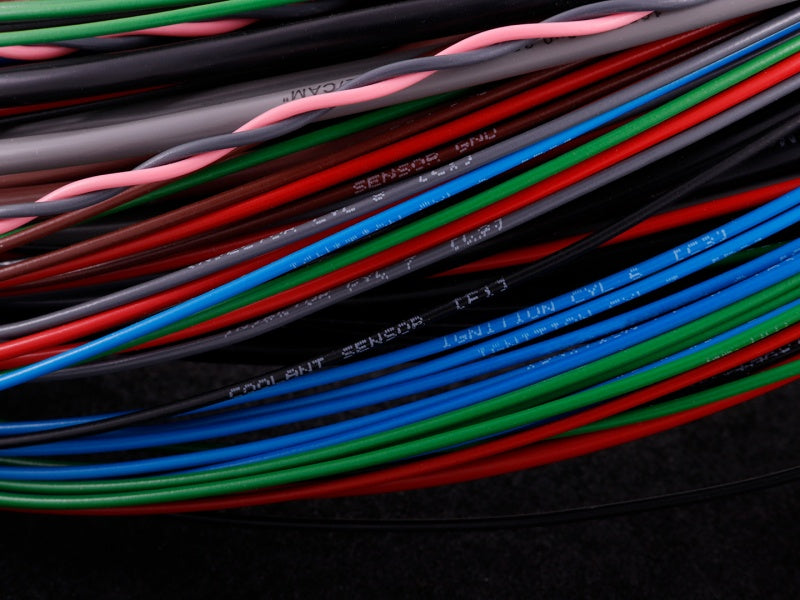

MaxxECU PRO Connector 3 Flying Lead Harness Wire Labels
MaxxECU PRO Connector 3 Flying Lead Harness MaxxECU PRO Connector 3 Flying Lead Molex ECU Connector MaxxECU PRO Connector 3 Flying Lead Harness Wire Labels

MaxxECU PRO Flying Lead Harness Connector 3

$218.95
Add to wishlist
Checkout Secure

Flying lead harness for connector 3 of a MaxxECU Pro, perfect for those looking for a clean MaxxECU Install.

Features:

  • Fully populated.
  • 10 Feet Long
  • High Quality Fine Strand Copper, High Temperature Insulation Wire

More Information:

Extends MaxxECU Pro's capabilities with the following:

  • DIN (VR) 4/5
  • DIN 6/7
  • WBO 2 + GPO 10(WBO 2 heater)
  • Analog in 0-5V 5-12
  • GPO (+12V) 15-22
  • E-Throttle motor 1+2
  • INJ 9-16
  • IGN 9-12
  • KEY_IN(+12V) + 12V ECU 2 + Engine GND 2
  • Sensor GND + 5V power supply 2

Note: This Harness is color coded and labeled every 6 to 8 inches.



ECU Connector Pinouts:

MaxxECU PRO Pin out
